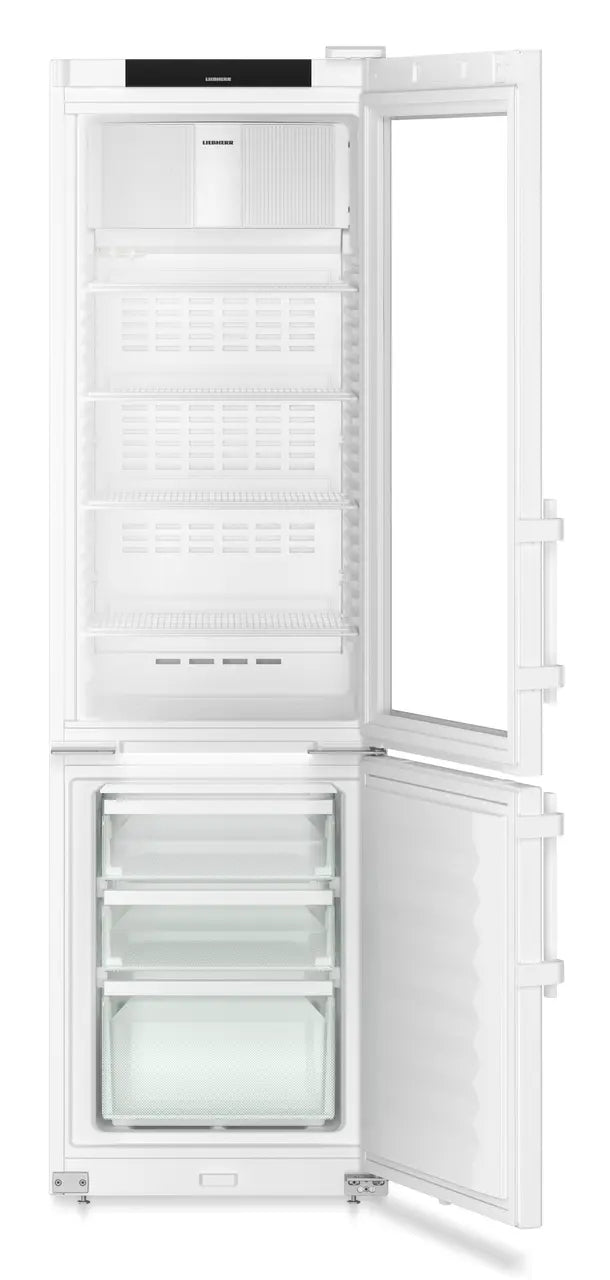

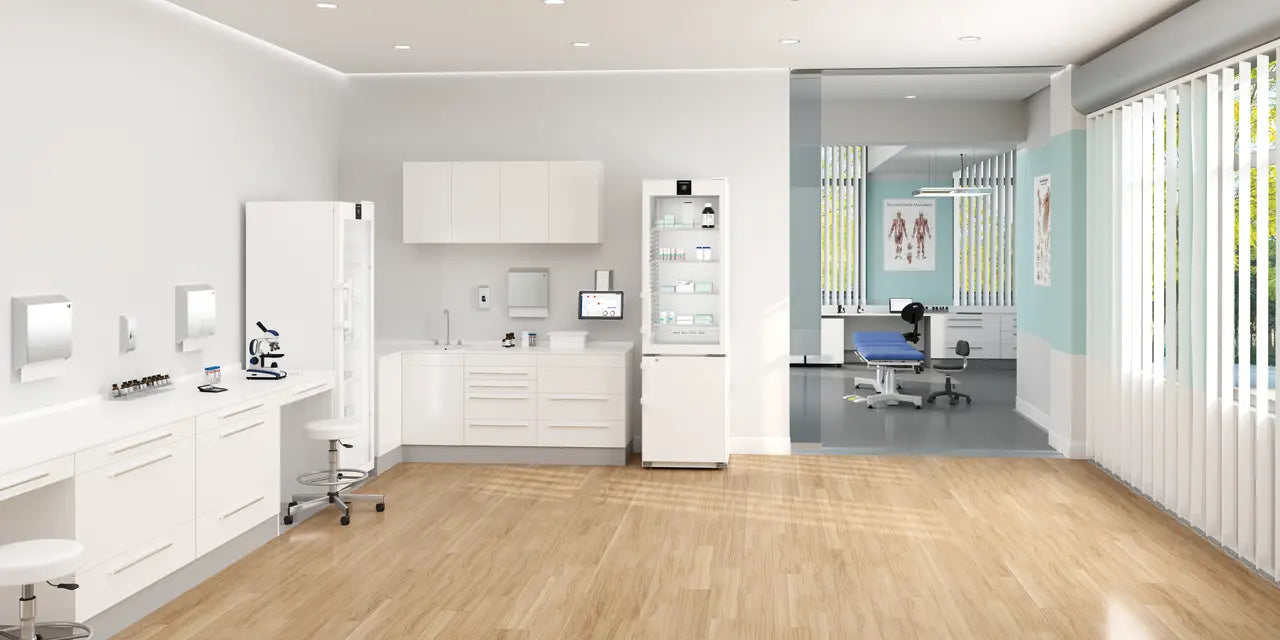

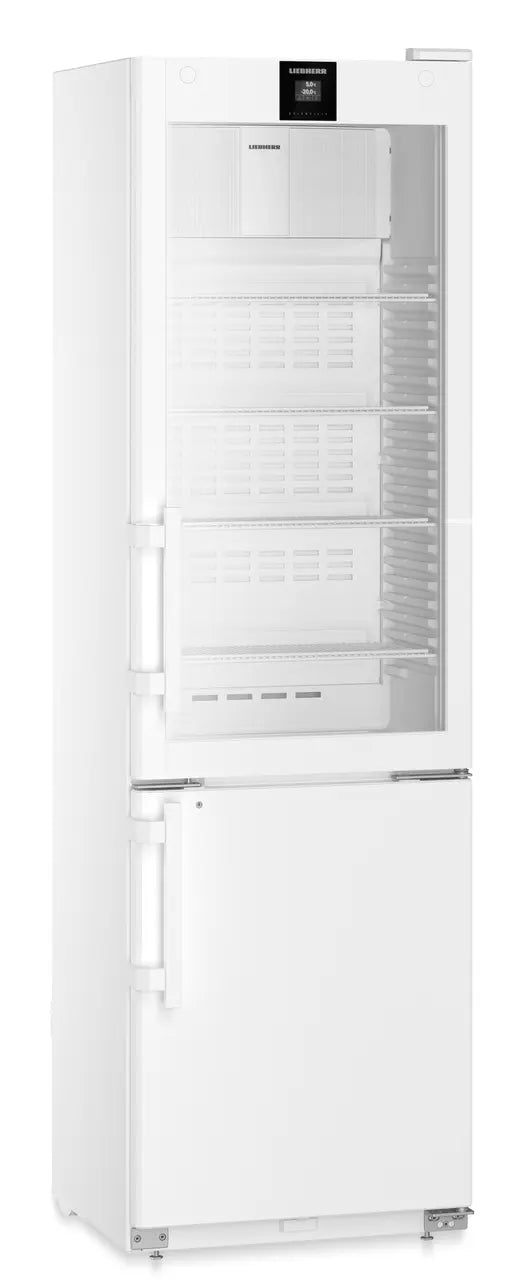

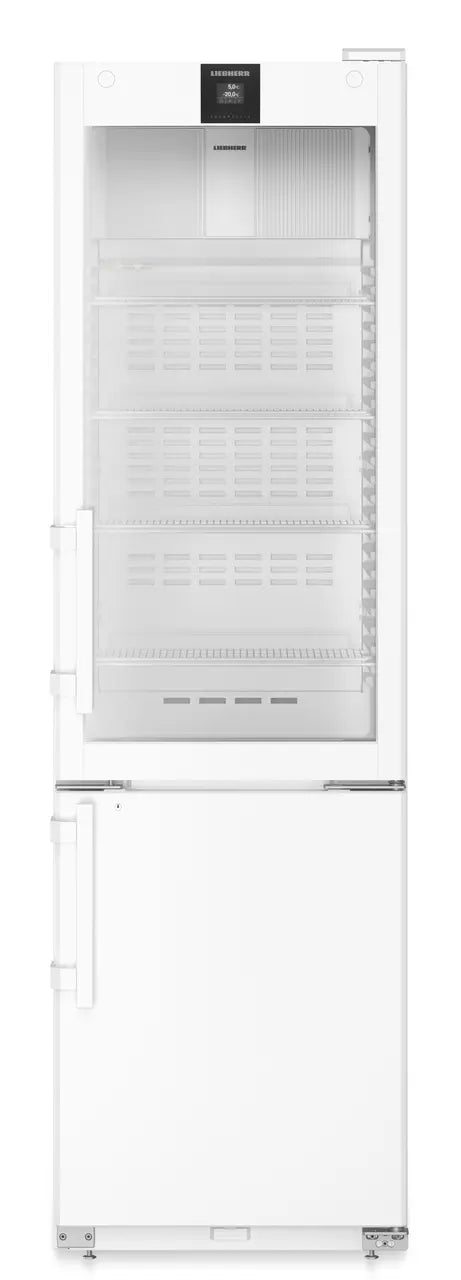

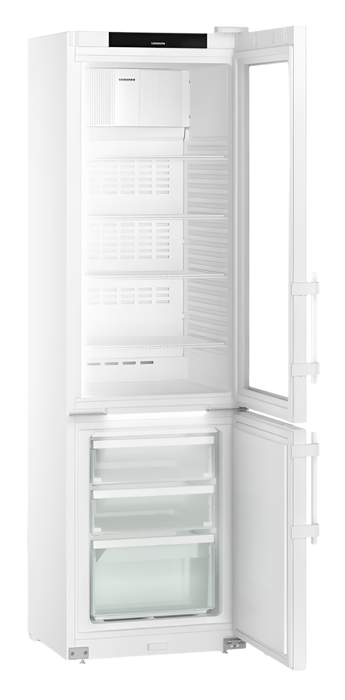

Liebherr SCFvh 4032 Perfection Laboratory Combination Refrigeration Freezer
+2 °C SafetyDevice
If the temperature falls below +2 °C due to a malfunction while the temperature setting is at +5 °C or higher, the SafetyDevice takes control, stabilizing the temperature, activating the alarm and protecting the contents from freezing. At colder settings, this activation threshold decreases relatively with the temperature setting.
Ultra efficient
Energy-efficient refrigerators and freezers help with ever increasing electricity prices. Liebherr fully utilizes the savings potential of every component – from the compressor to the seal, to the lighting and electronics. The ultra-efficient appliances in the Perfection series, for example, demonstrate how this has a positive effect on your overall operating costs.
NoFrost technology
With professional laboratory appliances from Liebherr, defrosting is no longer necessary. Any moisture that occurs is bound by the fan-assisted cooling, and needs-based defrosting phases drive even the last moisture particles out of the interior. For convenient, safe, and ice-free storage.Alarm notifications are forwarded to the control center for immediate action in critical situations.
Easy to clean interior
The plastic inside container is made of polystyrene: a fully recyclable, robust, and odorless plastic. Manufactured seamlessly from one piece, it has no hidden dirt traps and the large corners can be cleaned quickly and easily. The perfect combination of sustainability and hygiene.
Alarm relay
In the event of an alarm, the responsible control center is informed immediately, usually through connection to the building control system. You can define in advance which alarms are to be forwarded, as well as set how long the forwarding remains active and whether a reminder should be sent after the alarm acknowledgement. This allows you to react immediately in critical situations.
Additional access port for calibration
An additional feedthrough can be retrofitted for regular calibrations or measurements. For this purpose, a hole is drilled for a cable inlet with a maximum diameter of 1.5 in. at a specially designated location.
Accurate 1-point calibration
The laboratory appliances with electronic controls have a 1-point calibration function for extremely accurate temperature control. This allows compensation between the set temperature and the actual internal temperature. The correction value can be adjusted in increments of 0.1 K.
Intuitive menu navigation
Self-explanatory, convenient, and clear: Seamlessly integrated into the front, the control panel shows detailed appliance information and your current appliance status on a large display, which is color-coded according to the category. The menu navigation is self-explanatory and is controlled by “touch and swipe.”
Antibacterial lever handle
Protection against unintended disconnection or manipulation of the power switch.A benefit for users but a bane for germs: The easy-turn handle mechanism makes opening the door effortless. It contains special antimicrobial substances that reduce bacteria by up to 99.99%*. Regular and time-consuming disinfection is not necessary. This means the appliance is extremely safe even if many people have access to it. *According to ISO 22196:2011
Clear appliance information
All of the information about the appliance should be there exactly when you need it. That's why every Liebherr has its serial and service number as well as the model designation on the display, where it can be easily read. Frustrated searches or even having to clear the interior out to be able to read the information are now a thing of the past.

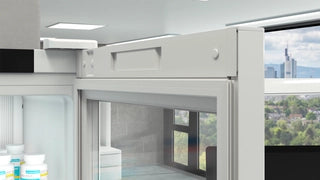

Interchangeable door hinge
Liebherr appliances are fitted with a right-hand door hinge as a standard. Without much effort – and without any additional parts – the door hinge can be changed to the left. This allows you maximum flexibility when choosing your installation location.
Digital temperature display
The digital temperature display indicates the refrigerator’s interior temperature to the exact degree. This can be easily read from the outside to give users immediate information and without the need to open the appliance.
Evaporator cover
The evaporator is secured with a cover to prevent stored substances from coming into contact with its cold surface. This means that it is impossible for substances to accidentally freeze on its surface. In addition, the evaporator cover ensures even greater temperature stability.
LED front lighting
The LED front lighting provides optimal illumination of the drawers even in dark environments. Thanks to the perfect overview, the desired substance is immediately at hand, the door can be quickly closed again, and the interior temperature remains stable. For low consumption and lower energy costs.
Vertical LED lighting
Vertical LED lighting provides optimal illumination of the interior over the entire height of the appliance. Thanks to the perfect overview on all levels, the desired substance is immediately at hand, the door can be quickly closed again, and the interior temperature remains stable. This saves you unnecessarily searching for something – and above all energy costs.
Reminder function
The interval timer reminds you of the date of the next basic cleaning or gives the weekly reminder to check the expiration dates of the products. The interval can be selected from predefined intervals and set directly on the appliance. Leaving you to focus solely on your work.
Power failure alarm
If a malfunction occurs, an integrated battery provides a visual and audible alarm and takes over the power supply. As soon as the power is restored, the time of failure and the maximum temperature reached are displayed.
SafetyStop
The wire shelf with the pull-out stop ensures stability and a safe working environment: The wire shelf cannot be pulled out by mistake – even if things start to get a little hectic. When stocking or emptying the appliance, it remains reliably fixed in position – and you are spared any mishaps.
Self-closing door <90° / automatic door-closing at less than 90°
Carry out routine work in comfort; reassurance nothing will be missed: From an opening angle of approx. 90°, the appliance door remains open and facilitates stocking and unloading as well as cleaning. Below approx. 90°, it closes by itself so that the appliance does not remain open accidentally. This keeps the temperature stable and preserves the quality of your goods.
Settings with password protection
All settings that influence the function or control of the appliance can be secured by password. This means that the contents are optimally protected from unwanted changes or manipulation to the storage conditions.
SmartLock
If a temperature alarm occurred, Liebherr SmartLock automatically locks the door of the appliance so that products with an interrupted cold chain do not accidentally enter circulation. Only authorized persons can unlock the lock again – and make a decision about the condition of the stored substances.
Ten years spare parts availability
Sustainable means the appliance is not only environmentally friendly and economical, but also durable. To ensure that you can enjoy your Liebherr appliance for a long time, Liebherr guarantees spare parts availability of at least ten years. Although we do everything we can to ensure that spare parts are not needed in the first place.
Height-adjustable feet
With height-adjustable feet as an accessory, the height of the appliance can be adjusted to your needs. For example, you could raise your professional appliance to clean under it more easily.
Alarm history
In order to be able to evaluate the quality of the stored substances, a clear history of anomalies that have occurred is necessary. The alarm history records important data about the last ten alarms such as date, duration or maximum temperature. This way, you don't rely on your memory to perform the check but rather rely on the facts.
Alarm test
An alarm is only ever any good if it can be triggered. The alarm test can be used to check the functionality of the internal and possibly an externally connected alarm device. The cooling of the appliance is not interrupted during the test run, so you can arrange an emergency simulation and rehearse with your team as you please.
Replaceable door seal
Save time and money: Liebherr's plug-in door seals can be easily replaced. If a seal is damaged, you can replace it yourself without any tools.
Cleanroom compatible
Liebherr refrigerators and freezers in the new scientific line have been tested for use in cleanrooms in accordance with DIN EN ISO 14644. As a result, an additional risk assessment by the customer to determine cleanroom suitability is no longer necessary. This saves time and money.
Demo mode
For training purposes or exhibitions, the functionalities of the appliance can be simulated in demo mode without having to operate the appliance. This saves time and money as the cooling function is not needed.
Feedthrough for external sensors
To additionally control the storage temperature with the help of a separate sensor, wiring from the outside to the inside is required. The cable feeding offers a clean and professional solution here. The integrated opening allows connection without drilling holes or breaking the door seal.
Hidden customer menu
Protected, secure, simple: The hidden customer menu provides users with status information about the appliance or allows them to make detailed appliance settings, such as resetting to factory settings. Since this information and the settings are located on a separate, code-protected menu level, unwanted changes or manipulation are avoided.
Hidden technician menu
The hidden service menu allows individual configuration of the appliance, such as alarm sound on/off, adjustment of target value ranges or changes to automatic defrosting. By making technical fine adjustments, the appliance can be adapted to your specific needs.
Integrated data logger
To ensure full traceability independent of the monitoring systems, the integrated data logger records the temperature profile, alarm history, and service information for up to five years. The stored data can be read out directly on the appliance via a USB interface.
LightAlarm
In case of an uncontrolled temperature rise, if a door has been left open or there were any other problems, the interior light of the appliance will start flashing. In the case of glass-door appliances, this quickly reveals where action is needed. In the case of solid-door appliances, the flashing interior warns to close the door immediately in order to preserve the storage quality.
Manual defrost start
Doors left open or evaporating substances can cause icing on the evaporator resulting in temperature fluctuations and higher energy consumption. Via menu selection, you can start an automatic defrost to clear the appliance of ice, restoring optimal storage conditions and lower energy consumption.
Min./max. temperature recording
Always keep an eye on the temperature: Min./max. temperature recording stores the minimum and maximum temperature values of the interior that have occurred from a defined start time and shows them clearly in the display. This way you can be sure that, up until the moment you read off the values, the storage temperatures were always within the tolerated limits.
Almost maintenance free
Saves time, energy, and money: Liebherr’s professional freestanding appliances operate without filters or other components and parts that require regular replacement. Only cleaning and calibration in line with your individual needs are necessary on a regular basis.
Product sensor PT1000
In addition to the standard control sensor, a separate PT1000 sensor is connected to measure a simulated product temperature. The product sensor temperature shown in the display can be calibrated independently, instrument alarms and min./max. limits refer to this value. For greater storage reliability based on real product values.
Quick start guide
No one likes to read the instructions. That's why Liebherr offers the most important information at a glance on two pages. This includes information on menu navigation, the electronic lock, cleaning, and general topics such as stored goods that are or are not permitted. Leave the technician in charge of reading the original manual.
Recommended cleaning products and disinfectant
Liebherr appliances are designed to have a product lifetime of 15 years. To maintain this, cleaning and disinfecting agents that have been tested by Liebherr for safe use are recommended separately, or in the manual. This way you can be sure that you are not harming your appliance by mistake when you are actually trying to take care of it.
Easy Maintenance
The combination of sophisticated concepts and high-quality, durable materials ensures that our refrigerators and freezers are virtually maintenance-free and very easy to operate.
Easy to Clean
Liebherr professional appliances are equipped with molded inner liners, with rounded corners and no hidden dirt-traps, making the appliances easier to clean. All appliances are designed and certified according NSF and ETL Sanitation standards.
Electronic Control
The easy to use electronic control system is equipped with default temperature range and humidity control programs, and controls the energy-saving defrost function as required. The integrated min/max logger records and stores the interior temperature for HACCP-compliant documentation at regular intervals. In cases of temperature deviations, the electronic control system triggers a visual and audible door alarm, thus protecting your products. The sturdy membrane keyboard is dirt resistant and easy to clean.
| General Information | |
|---|---|
| Model Type | Laboratory refrigerator with convection cooling and an interior free of ignition sources |
| Classification | Performance |
| GTIN | 9005382255612 |
| Performance and Consumption | |
| Energy Consumption (24h) | 0.630 kWh / 24h |
| Noise Level | 48 dB |
| Energy Consumption (Yearly) | 230 kWh/a |
| Ambient Temperature | 50°F to 95°F |
| Refrigerant | R 600a |
| Heat Emission | 221 kJ/h |
| Heat Distribution System | Air cooling |
| Rated Power Consumption | 90.0 W |
| Voltage | 115-127V~ |
| Frequency | 60 Hz |
| Maximum Fluctuation | 3.1 °C |
| Gradient | 3.6 °C |
| Controls and Functions | |
| Control Unit | Touch |
| Power Failure Alarm | When mains power returns |
| Malfunction Warning Signal | Optical and acoustical |
| Positive Temperature Deviation | 1.4 Kelvin |
| Negative Temperature Deviation | -3.4 Kelvin |
| Heating Time (+5°C to +10°C) | 62 min |
| Cooling Time (+25°C to +5°C) | 37 min |
| Recovery Time (After 1 Min Door Opening) | 8 min |
| Potential-Free Contact | ✔ |
| Connectivity Type | SmartModule |
| Interface | WLAN/LAN (optional) |
| Min./Max. Temperature Recording | Yes |
| Alarm History | No |
| Product Sensor | No |
| Refrigerator Compartment | |
| Adjustable Temperature Range | 38°F to 60°F |
| Temperature Display | External digital |
| Defrosting Method | Automatic |
| Interior Light | No |
| Drawers | 0 |
| Number of Storage Shelves | 5 |
| Adjustable Shelves | 4 |
| Design and Materials | |
| Side Wall Material | Steel |
| Cabinet Material | White |
| Handle | Antimicrobial handle with opening mechanism |
| Interior Container Material | Plastic White |
| Storage Shelf Material | Glass |
| Specifications | |
| Total Gross Volume | 12.1 cubic feet |
| Total Net Volume | 11.1 cubic feet |
| Exterior Dimensions (H x W x D) | 66 5/16" x 23 9/16" x 25 3/4" |
| Weight (With Packaging) | 154.3 pounds |
| Certifications | IEC 60068-3, IEC 61010-1, IEC 61010-2-011, IEC 61326-1 |
| ATEX Classification | < Ex > II 3/- G Ex IIC T6 Gc/- |
| Clean Room Class | ISO Class 4 |
