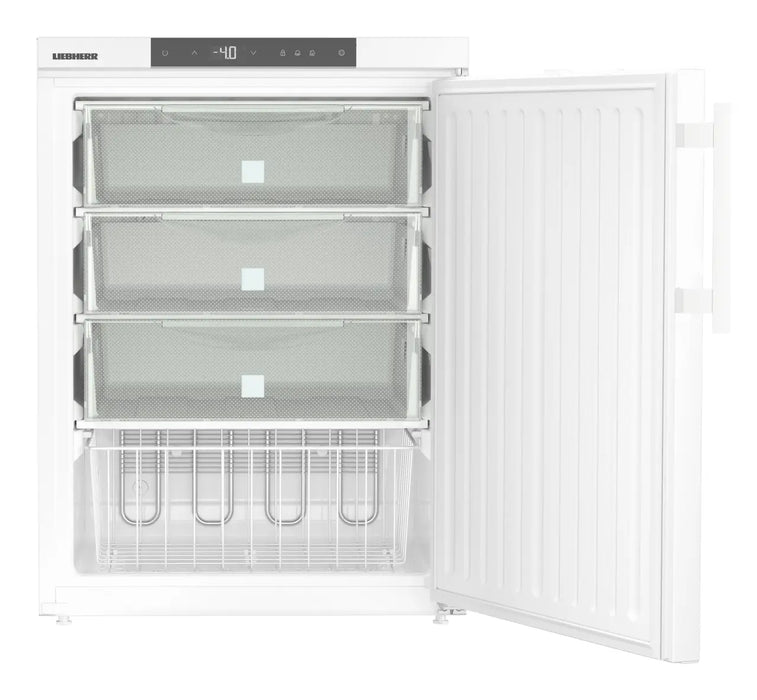

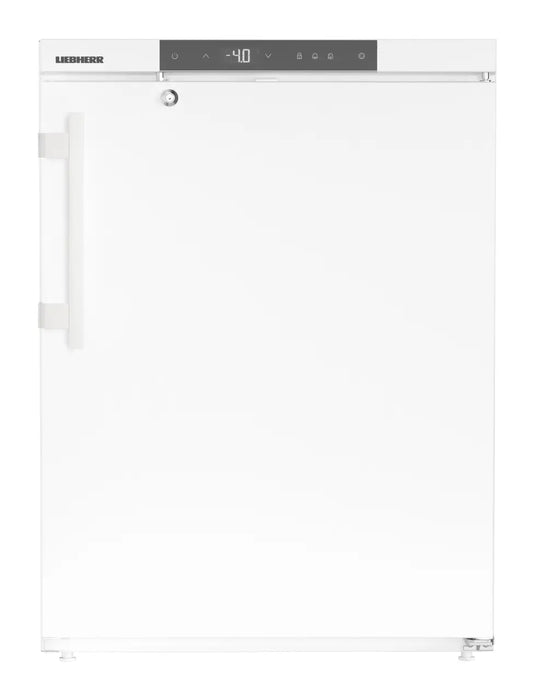

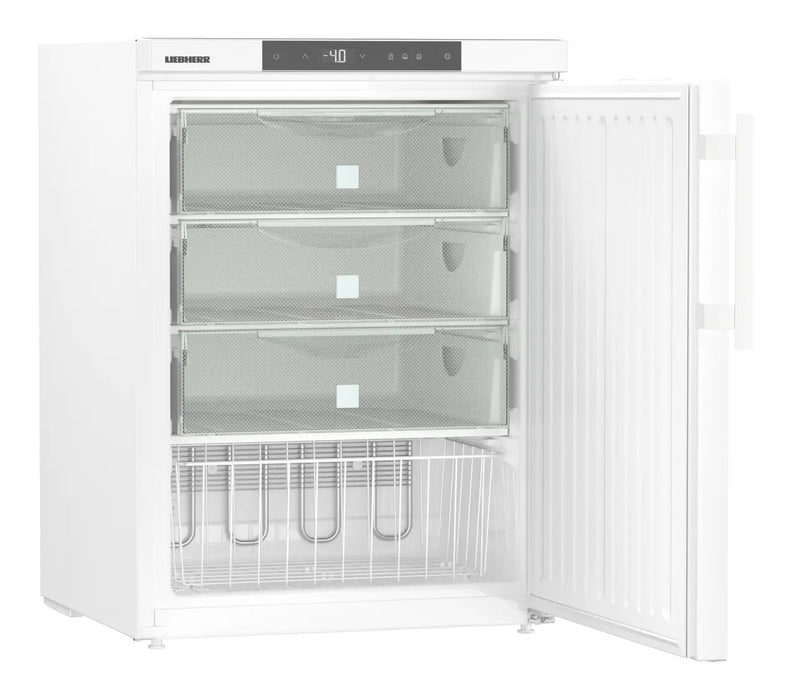

Liebherr LFBFS05W1HC Laboratory Freezer with Convenient Electronic Controls

Save up to 45% Save 45%
$6,299.00
$6,299.00
Original price $6,299.00
Current price $3,449.00
$3,449.00
Current price $3,449.00
Delivery Types
Pickup
Pickup
Pick up by customer
Basic Plus (+$50)
One [1] person delivery, first 250 pounds, placement in first dry area [porch, garage or driveway] and 4-hour delivery window. Includes the first fifty (50) one-way miles from the designated carriers terminal service facility. Signature required upon delivery.
Room of Choices (+$75)
Standard last mile delivery. Includes two [2] person delivery team for shipments greater than 250 pounds and placement of product in consignee's room of choice and 4-hour delivery window. Includes the first fifty (50) one-way miles from the designated carriers terminal service facility. Signature required upon delivery.
White Glove (+$100)
Premium last mile delivery. Includes two [2] person team, first 250 pounds, two flights of stairs, room of choice placement, unpacking, light assembly, and debris removal. Includes the first fifty (50) one-way miles from the designated carriers terminal service facility. Signature required upon delivery.
1
Responsive Table View
Overall Dimensions Height/Width/Depth82.1 / 60.1 / 61.8 cm
Adjustable temperature range-9°C to -26°C
Additional equipment

SmartMonitoring can be retrofitted

Liebherr SmartMonitoring is a comprehensive solution for recording and monitoring measurement and operating data, alarm messages and equipment status.

Energy Star

Environmentally friendly refrigerant

Liebherr equipment is optimized with regard to high energy efficiency and low operating costs. Only environmentally friendly natural refrigerants R 600a and R 290 are used. When used in conjunction with a high-efficiency compressor, it has extremely powerful performance and, because it has little harm to global warming, it will also be very competitive in the future.

Energy Star

Efficient refrigeration

Liebherr has decades of experience in the field of refrigeration technology. Coupled with continuous research and development, we are confident that the quality of our refrigeration systems leads the industry. Through high-quality compressors, condensers, evaporators and other refrigeration components, Liebherr Electric has proven to effectively reduce energy consumption and operating costs.

Electronic Control

Alarm test function

This test function can be used to check whether the alarm system is functioning properly, whether it is an internal or externally connected alarm system. This test does not affect the refrigeration performance of the refrigerator.

Electronic Control

Explosion proof: ATEX 95

ATEX 95 certification certifies that Liebherr's explosion-proof laboratory refrigerators and freezers are suitable for the storage of explosive and highly flammable materials in accordance with EU Directive 2014/34/EU (ATEX).

Electronic Control

Serial Bus Interface

The device uses a serial bus interface and can be connected to an external monitoring system. If the monitoring system is not yet connected via an interface, you can order the optional accessory "Interface converter retrofit kit" to establish a connection to a PC or laptop. Through the bus interface, up to 20 devices can be connected in series to form a network. In this way, data such as temperature and alarm can be recorded and archived through SmartMonitoring.

Additional equipment
Foamed inner doors

Temperature warning device

An integrated temperature alarm indicates if the temperature exceeds the lower or upper alarm threshold. With both audio and visual signals, it provides a high level of safety for stored food.

Designed for a service life of 15 years

EN 60068-3 Specification Test Temperature Stability and Consistency

All laboratory refrigerators and freezers are tested in Liebherr's state-of-the-art development facilities according to the international standard EN 60068-3 for temperature stability. This involves measuring the temperature at nine different points within the chamber.

Designed for a service life of 15 years

Built-in refrigerator under the worktop

Several Liebherr models can be built into a worktop. This type of built-in unit usually requires a ventilation grille (minimum 200 cm2) to be installed behind the worktop to ensure that the unit has adequate ventilation and aeration. If the workbench is not fitted with ventilation grilles, the niche height must be at least 860 mm to allow adequate heat dissipation towards the front. For small workspaces, an undercounter refrigerator is the ideal choice.

Designed for a service life of 15 years

Double-sided door hinge (left/right)

The integrated water filter ensures that the ice water quality meets the standards at all times. The electronic control system will display when the water filter needs to be replaced.

General Information
Product GroupLaboratory freezer with convenient electronic controls
ClassificationMedical Series
Global Trade Item Number9005382237359
Output and Power Consumption
Energy consumption in 24 hours0.908 kWh/24 hours
Annual energy consumption332 kWh/year
Ambient temperature10 to 35 degrees Celsius
refrigerantR 600a
Voltage115 V ~
frequency60 Hz
Maximum fluctuation3.3 degrees Celsius
Maximum slope6.6 degrees Celsius
Controls and Features
Power failure warningWhen main power is restored
Fault: Warning signalVision and hearing
Potential-free contact
Enable SmartMonitoringhave
Network connection
interfaceRS 485
Freezer
Total volume frozen140L ​
Net volume freeze123 liters
Adjustable temperature range-9°C to -26°C
Temperature display deviceExternal digital
Cooling Technology
Cooling system, freezerstill
Interior lighting
Storage basket1
Freezer storage drawers3
Number of storage racks4
Bottom grid shelf
Design and Materials
Side wall materialsteel
colorWhite
Door materialsteel
handleSlim, ergonomic handle with opening mechanism
Material of containerWhite plastic
Freezer compartment adjustable storage shelf materialEvaporator plate
Adjustable feet materialSteel, zinc iron
Assembly and Installation
Self closing door
Door hingeright
Adjustable feet, height adjustable—mm ​
Casters
Caster Type
Safety lockMechanical
Connection cable (length)2,800 mm
Specifiacation
Total volume140L ​
Total net volume123 liters
Overall dimensions Height/Width/Depth82.1 / 60.1 / 61.8 cm
Overall dimensions Height/width/depth (including packaging)875.0 / 615.0 / 709.0 mm
Total weight without packaging42.00 kg
Total weight including packaging45.00 kg
Freezer storage rack bearing capacity24 kg
Net width of storage rack47 cm
Net depth of storage rack45.0 cm
