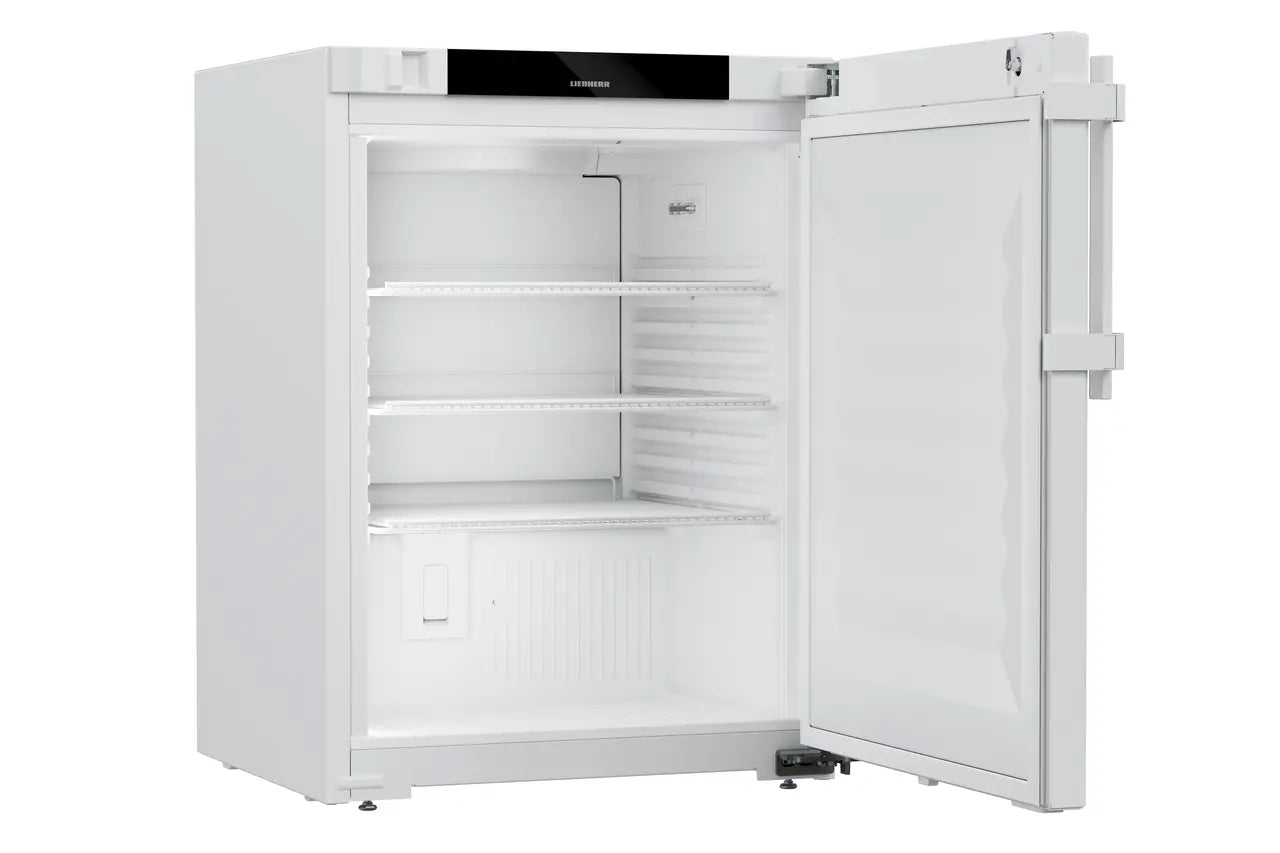

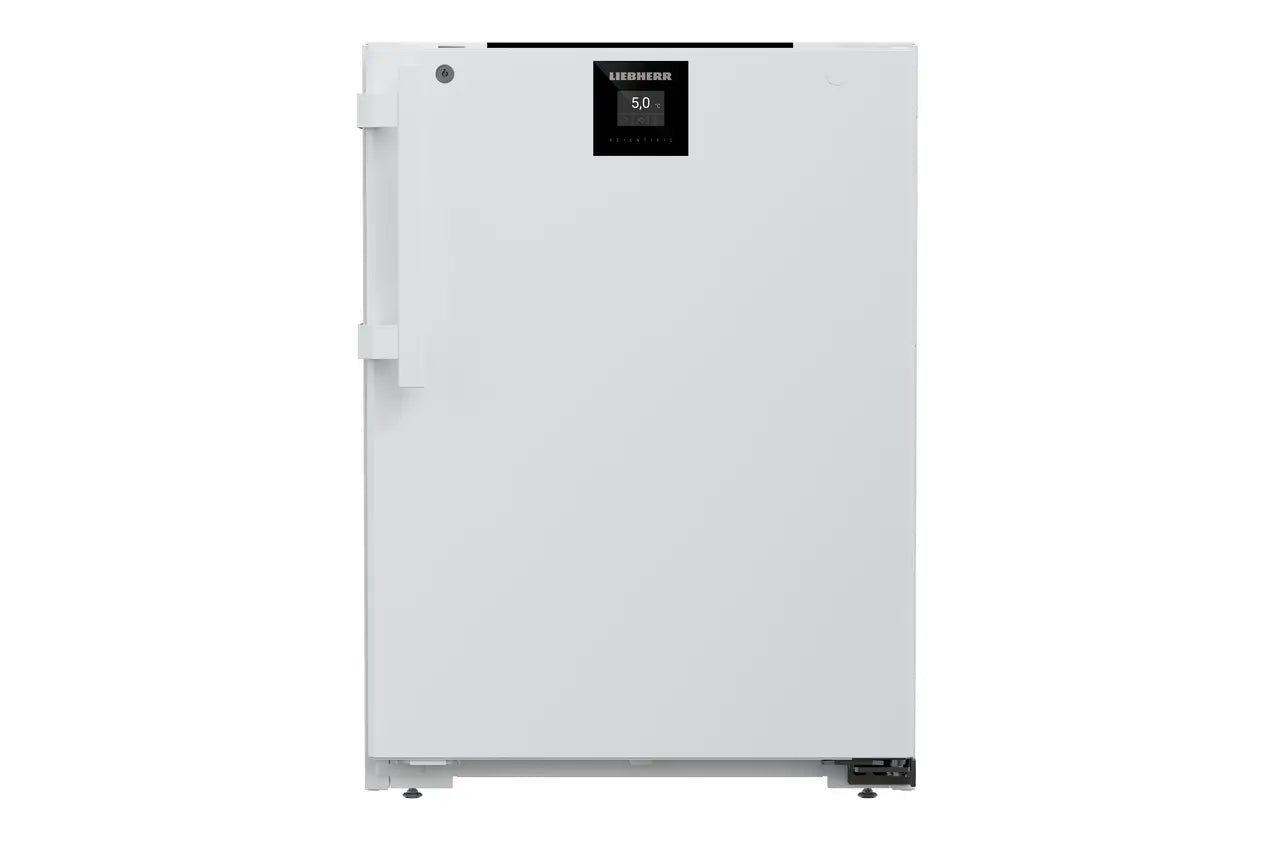

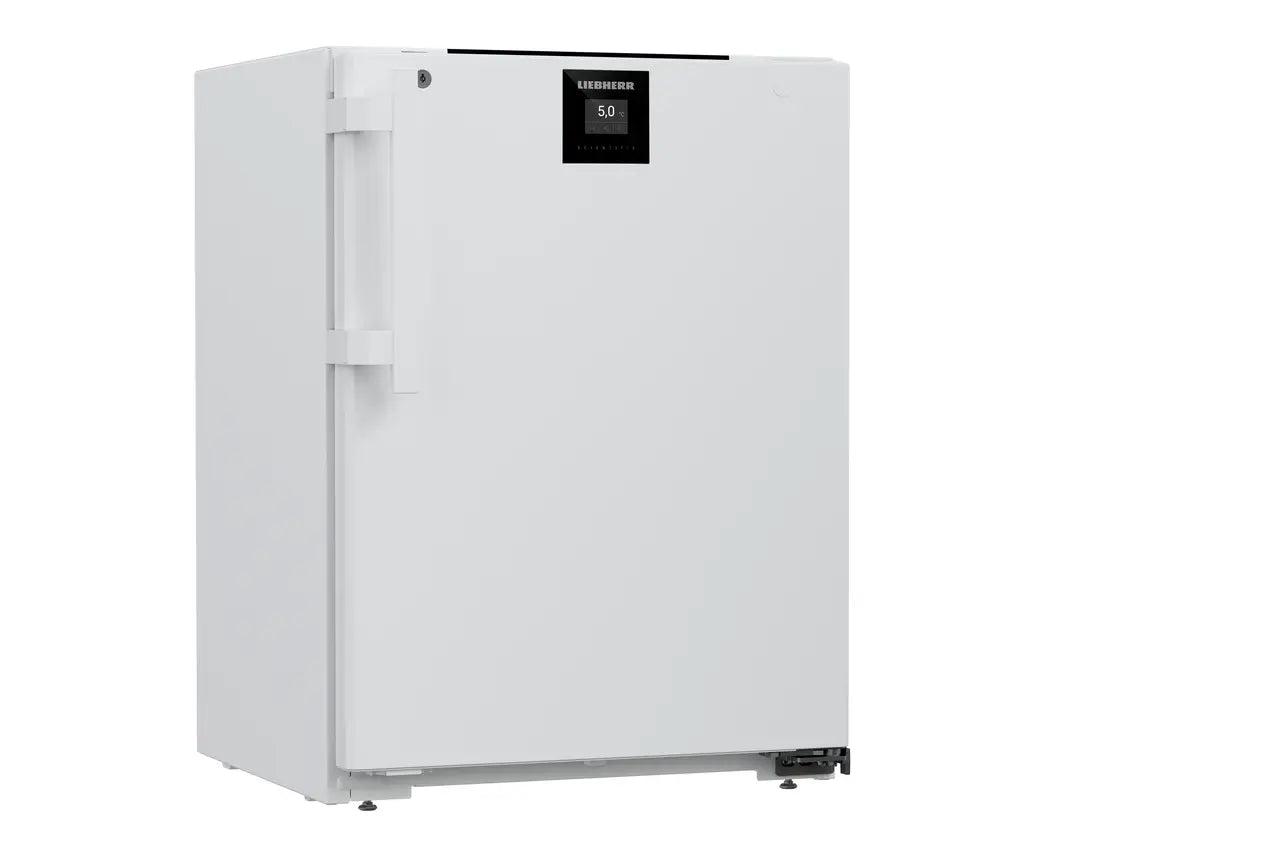

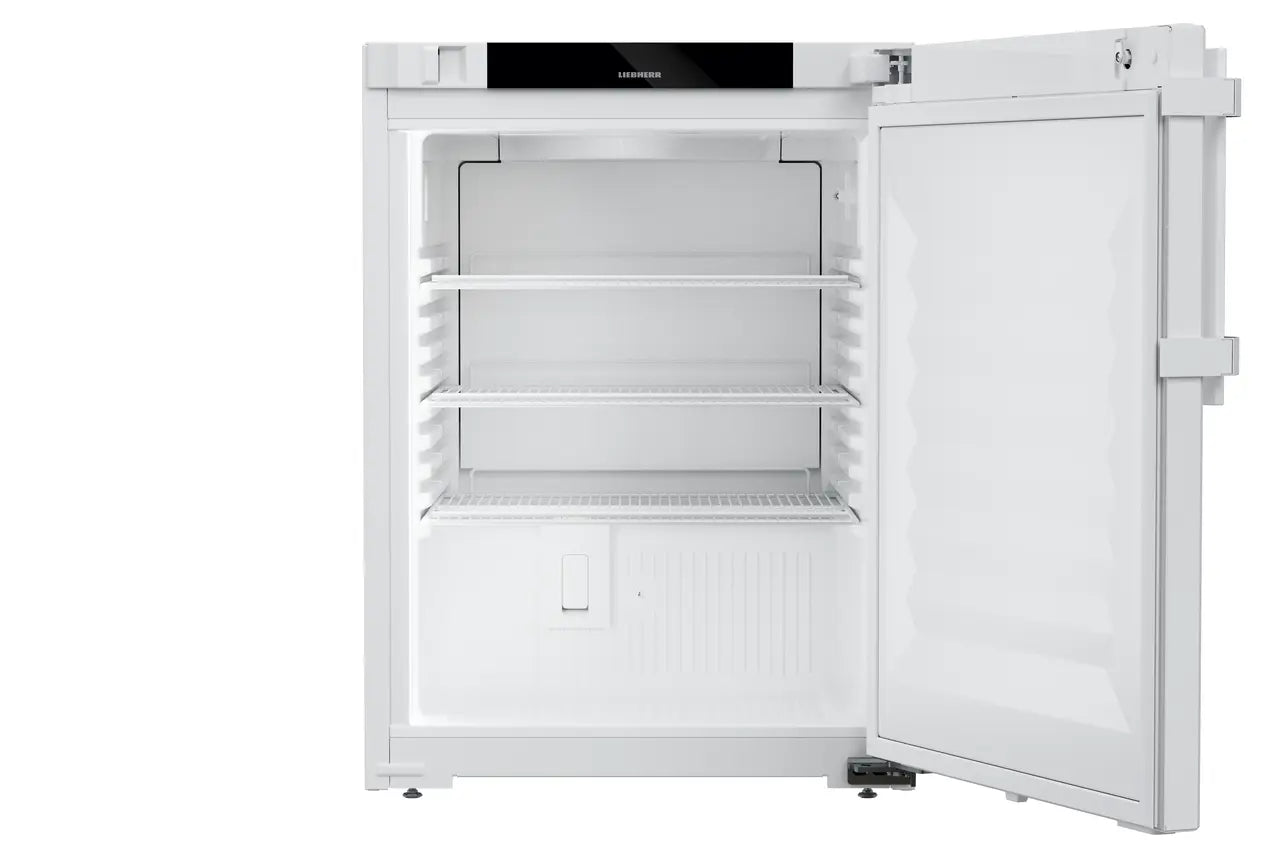

Liebherr SRTvh 1501 Perfection Laboratory Refrigerator with Convection Cooling

Liebherr SRTvh 1501 Perfection Laboratory Refrigerator with Convection Cooling

Name: Liebherr SRTvh 1501 Perfection Laboratory Refrigerator with Convection Cooling
Brand: Liebherr Professional
SKU: SRTvh 1501
Price: 2448.35 USD
Availability: InStock

This undercounter fridge for laboratories offers the utmost in temperature stability, safety, and ease of use. Innovative functions protect sensitive substances in the event of faults, well-thought-out design facilitates cleaning and high-quality components provide maximum efficiency.

Exterior dimensions: height/width/depth: 32 3/16 | 23 1/2 | 23 13/16 in

Adjustable temperature range: +3 °C to +16 °C

$2,448.35

Delivery Types

Disposal or Recycle Require ?

Delivery Types

Pickup

Basic Plus (+$50)

Room of Choices (+$75)

White Glove (+$100)

Disposal / Recycle Required?

No Yes(+$100)

Responsive Table View

Exterior dimensions height/width/depth	32 3/16 \| 23 1/2 \| 23 13/16 in
Adjustable temperature range	+3 °C to +16 °C

Need More Details

Additional equipment

DIN 13277 compliant

Laboratory and pharmacy refrigerators from Liebherr meet all the necessary features and performance criteria to fully comply with DIN 13277. DIN 13277 defines the requirements and test specifications for refrigerators and freezers used in laboratories and for storing medicinal products.

German engineering

Our superior products offer premium quality, cutting edge design and innovative features that fit with your busy lifestyle. Plus, exclusive components and materials along with the latest production processes ensure energy efficiency and performance for years to come.

±2°C temperature stability

Temperature fluctuations must be minimal to ensure that the quality of sensitive substances is preserved. Liebherr appliances have an impressive maximum deviation of just ±2 °C from the set temperature. This not only maintains the storage climate, but also the value of your stored goods.

Energy Star

Liebherr refrigerators help to produce less energy waste and greenhouse gas emissions with the aim of having the least damaging effect on the environment and offering solutions that help consumers conserve energy.

Ultra efficient

Energy-efficient refrigerators and freezers help with ever increasing electricity prices. Liebherr fully utilizes the savings potential of every component – from the compressor to the seal, to the lighting and electronics. The ultra-efficient appliances in the Perfection series, for example, demonstrate how this has a positive effect on your overall operating costs.

+2 °C SafetyDevice

If the temperature falls below +2 °C due to a malfunction while the temperature setting is at +5 °C or higher, the SafetyDevice takes control, stabilizing the temperature, activating the alarm and protecting the contents from freezing. At colder settings, this activation threshold decreases relatively with the temperature setting.

Additional equipment

Integrated Wi-Fi/LAN interface

The integrated WiFi/LAN interface enables you to easily connect your appliances with Liebherr SmartMonitoring or integrate these into existing local systems.

Designed for a service life of 15 years

Sustainable means the appliance is not only economical, but also durable. High-quality materials and solid workmanship, coupled with at least ten years of spare parts availability, make a Liebherr appliance a robust, reliable, and extremely long-lasting top performer in demanding everyday work.

Easy to clean interior

The plastic inside container is made of polystyrene: a fully recyclable, robust, and odorless plastic. Manufactured seamlessly from one piece, it has no hidden dirt traps and the large corner radii can be cleaned quickly and easily. The perfect combination of sustainability and hygiene.

Alarm relay

In the event of an alarm, the responsible control center is informed immediately, usually through connection to the building control system. You can define in advance which alarms are to be forwarded, as well as set how long the forwarding remains active and whether a reminder should be sent after the alarm acknowledgement. This allows you to react immediately in critical situations.

Intuitive menu navigation

Self-explanatory, convenient, and clear: Seamlessly integrated into the front, the control panel shows detailed appliance information and your current appliance status on a large display, which is color-coded according to the category. The menu navigation is self-explanatory and is controlled by “touch and swipe.”

Antibacterial lever handle

A benefit for users but a bane for germs: The easy-turn handle mechanism makes opening the door effortless. It contains special antimicrobial substances that reduce bacteria by up to 99.99%*. Regular and time-consuming disinfection is not necessary. This means the appliance is extremely safe even if many people have access to it. *According to ISO 22196:2011

Interchangeable door hinge

Liebherr appliances are fitted with a right-hand door hinge as a standard. Without much effort – and without any additional parts – the door hinge can be changed to the left. This allows you maximum flexibility when choosing your installation location.

Replaceable door seal

Save time and money: Liebherr's plug-in door seals can be easily replaced. If a seal is damaged, you can replace it yourself without any tools.

Evaporator cover

The evaporator is secured with a cover to prevent stored substances from coming into contact with its cold surface. This means that it is impossible for substances to accidentally freeze on its surface. In addition, the evaporator cover ensures even greater temperature stability.

Vertical LED lighting

Vertical LED lighting provides optimal illumination of the interior over the entire height of the appliance. Thanks to the perfect overview on all levels, the desired substance is immediately at hand, the door can be quickly closed again, and the interior temperature remains stable. This saves you unnecessarily searching for something – and above all energy costs.

Mechanical lock

All professional Liebherr appliances are equipped with a mechanical lock with two keys for the storage of temperature-sensitive products. This way you can be sure that no unauthorized hands can access your stored goods.

Pharmacist drawers

Optimal overview, easy access, high temperature stability: The practical organizational system made of cold-conducting aluminum is equipped with a transparent front, perforated base, flexible dividing walls, and a ¾-extension drawer. Medicines, vaccines, etc., can be quickly located – and the door is closed again without a great loss of cold air.

SafetyStop

The wire shelf with the pull-out stop ensures stability and a safe working environment: The wire shelf cannot be pulled out by mistake – even if things start to get a little hectic. When stocking or emptying the appliance, it remains reliably fixed in position – and you are spared any mishaps.

Side-by-side kit

The accessory kit provides a neat and secure solution for lining up multiple appliances. The units are firmly connected to each other via a profile rail so that they form a seamless front and cannot slip. Fixing them also guarantees the recommended distance and prevents condensation building up between the appliances.

Connection frame

Odor or temperature separation can be achieved courtesy of the white connection frame, which makes it possible to combine various refrigerators yet still maintain a small footprint.

Worktop

Get a bigger work surface with the robust worktop that can withstand up to 212°F. The optional worktop is easy to monitor and raises your appliance by 3 cm, making it very suitable for 85-cm work tables. The integrated ventilation slits ensure excellent heat dissipation when connected flush to the wall.

15 years of spare parts availability

Liebherr-Hausgeräte GmbH is taking the service life of its high-quality appliances one step further for its customers: Spare parts availability will be extended to 15 years from the end of production of the respective model. This applies to all functional parts and storable parts of the equipment. Liebherr-Hausgeräte also guarantees this service retroactively for all appliances produced since 1 January 2021.

Additional access port for calibration

An additional feedthrough can be retrofitted for regular calibrations or measurements. For this purpose, a hole is drilled for a cable inlet with a maximum diameter of 1.5 in. at a specially designated location.

Alarm history

In order to be able to evaluate the quality of the stored substances, a clear history of anomalies that have occurred is necessary. The alarm history records important data about the last ten alarms such as date, duration or maximum temperature. This way, you don't rely on your memory to perform the check but rather rely on the facts.

Alarm test

An alarm is only ever any good if it can be triggered. The alarm test can be used to check the functionality of the internal and possibly an externally connected alarm device. The cooling of the appliance is not interrupted during the test run, so you can arrange an emergency simulation and rehearse with your team as you please.

Cleanroom compatible

Liebherr refrigerators and freezers in the new scientific line have been tested for use in cleanrooms in accordance with DIN EN ISO 14644. As a result, an additional risk assessment by the customer to determine cleanroom suitability is no longer necessary. This saves time and money.

Clear appliance information

All information about the appliance should be there exactly when you need it. That's why every Liebherr has its serial and service number as well as the model designation on the display, where it can be easily read. Frustrated searches or even having to clear the interior to be able to read off the important codes are now a thing of the past.

Demo mode

For training purposes or exhibitions, the functionalities of the appliance can be simulated in demo mode without having to operate the appliance. This saves time and money as the cooling function is not needed.

Feedthrough for external sensors

To additionally control the storage temperature with the help of a separate sensor, wiring from the outside to the inside is required. The cable feeding offers a clean and professional solution here. The integrated opening allows connection without drilling holes or breaking the door seal.

Hidden customer menu

Protected, secure, simple: The hidden customer menu provides users with status information about the appliance or allows them to make detailed appliance settings, such as resetting to factory settings. Since this information and the settings are located on a separate, code-protected menu level, unwanted changes or manipulation are avoided.

Hidden technician menu

The hidden service menu allows individual configuration of the appliance, such as alarm sound on/off, adjustment of target value ranges or changes to automatic defrosting. By making technical fine adjustments, the appliance can be adapted to your specific needs.

Integrated data logger

To ensure full traceability independent of the monitoring systems, the integrated data logger records the temperature profile, alarm history, and service information for up to five years. The stored data can be read out directly on the appliance via a USB interface.

Min./max. temperature recording

Always keep an eye on the temperature: Min./max. temperature recording stores the minimum and maximum temperature values of the interior that have occurred from a defined start time and shows them clearly in the display. This way you can be sure that, up until the moment you read off the values, the storage temperatures were always within the tolerated limits.

Almost maintenance free

Saves time, energy, and money: Liebherr’s professional freestanding appliances operate without filters or other components and parts that require regular replacement. Only cleaning and calibration in line with your individual needs are necessary on a regular basis.

IEC 61010-2-011 Standard

Liebherr refrigerators and freezers specially developed for storing temperature-sensitive products are CE safety-compliant. This ensures that all mechanical and electrical requirements for injury-free operation are met – and that you and your team are kept safe.

Power failure alarm

If a malfunction occurs, an integrated battery provides a visual and audible alarm and takes over the power supply. As soon as the power is restored, the time of failure and the maximum temperature reached are displayed.

Product sensor PT1000

In addition to the standard control sensor, a separate PT1000 sensor is connected to measure a simulated product temperature. The product sensor temperature shown in the display can be calibrated independently, instrument alarms and min./max. limits refer to this value. For greater storage reliability based on real product values.

Quick start guide

No one likes to read the instructions. That's why Liebherr offers the most important information at a glance on two pages. This includes information on menu navigation, the electronic lock, cleaning, and general topics such as stored goods that are or are not permitted. Leave the technician in charge of reading the original manual.

Recommended cleaning products and disinfectant

Liebherr appliances are designed to have a product lifetime of 15 years. To maintain this, cleaning and disinfecting agents that have been tested by Liebherr for safe use are recommended separately, or in the manual. This way you can be sure that you are not harming your appliance by mistake when you are actually trying to take care of it.

Reminder function

The reminder function reminds you when the next basic cleaning or calibration is due. The interval can be selected from predefined intervals and set directly on the appliance. Leaving you to focus solely on your valuable work.

Settings with password protection

All settings that influence the function or control of the appliance can be secured by password. This means that the contents are optimally protected from unwanted changes or manipulation to the storage conditions.

Easy Maintenance

The combination of sophisticated concepts and high-quality, durable materials ensures that our refrigerators and freezers are virtually maintenance-free and very easy to operate.

Easy to Clean

Liebherr professional appliances are equipped with molded inner liners, with rounded corners and no hidden dirt-traps, making the appliances easier to clean. All appliances are designed and certified according NSF and ETL Sanitation standards.

Electronic Control

The easy to use electronic control system is equipped with default temperature range and humidity control programs, and controls the energy-saving defrost function as required. The integrated min/max logger records and stores the interior temperature for HACCP-compliant documentation at regular intervals. In cases of temperature deviations, the electronic control system triggers a visual and audible door alarm, thus protecting your products. The sturdy membrane keyboard is dirt resistant and easy to clean.

General Information
Model type	Laboratory refrigerator with convection cooling
Classification	Perfection
GTIN	9005382268599
Output and Consumption
Energy consumption in 24h	0.340 kWh / 24h
Measurement methodology for energy consumption	Laboratory Grade Refrigerators and Freezers Programme Requirements Version 1.1
Noise level	43 dB
Energy consumption per year	125 kWh/a
Refrigerant	R 600a
Heat emission	130 kJ / h
Heat distribution system	Air cooling
Rated power consumption Watt	50.0 W
Voltage	115-127 V ~
Frequency	60 Hz
Maximum fluctuation	2.9 °C
Gradient	2.0 °C
Controls and Features
Control unit	Touch & Swipe
Power failure alarm	immediately upon power failure for min. 12h
Malfunction: Warning signal	optical and acoustical
positive temperature deviation from the setpoint	1.9 Kelvin
negative temperature deviation from the setpoint	-1.8 Kelvin
Heating from +5 °C to +10 °C (empty, +25 °C TU)	63 min
Cooling time from +25°C to +5°C (empty, +25°C TU)	38 min
Recovery time after 1 min door opening (empty, +25 °C TU, according to EN 60068-3)	7 min
potential-free contact	✔
Connectivity type	SmartModule
Interface	WLAN/LAN
Data logger	integrated, USB interface
min./max. temperature recording	Yes
Alarm history	Yes
Product sensor	integrated
Refrigerator Compartment
Adjustable temperature range	+3 °C to +16 °C
Temperature display	external digital
Defrosting method	automatic
Interior light	LED lighting column, left
Drawers	0
Number of storage shelves	4
of which adjustable	3
Bottom grid shelf	—
Design and Materials
Side wall material	steel
Cabinet Material	white
Cabinet Material	Steel
Handle	Antimicrobial handle with opening mechanism
Material of interior containers	Plastic white
Storage shelf material, fridge compartment	Plastic-coated grids
Material of adjustable feet	Steel, zinced
Set-up and Installation
Self-closing door	✔
Door hinges	Right
Door hinge replacement	Possible for customer
Door seal	Replaceable
Height-adjustable feet	—
Position adjustable feet	Front
Castors	—
Type of castors	—
Lock	mechanical
Max. height of the installation site	6,500 ft above sea level
Protection	10-16 A
Connector cable (length)	3,000 mm
Specifiacation
Total gross volume	4.7 ft³
Total net volume	4.0 ft³
Exterior dimensions: height/width/depth	32 3/16 \| 23 1/2 \| 23 13/16 in
Weight (with packaging)	84.20 lb
Exterior dimensions: height/width/depth (with packaging)	890.0 / 615.0 / 710.0 mm
Weight (without packaging)	79.80 lb
Load-bearing capacity of shelf areas, refrigerator compartment	99.2 lb
Measurements: net depth of storage shelves in inches	16 3/4 in
Certifications	DIN 13277 / IEC 60068-3 / IEC 61010-1 / IEC 61010-2-011 / IEC 61326-1
Clean room class according to ISO EN 14664-1	ISO class 6
